Product Description

MACHINE CONDITIONER-802

Features :

  • Vibration Measurement all three
  • Parameters
  • (Velocity, Acceleration & Displacement)
  • Microcontroller based
  • Battery Low Indication
  • Data Hold
  • Back light LC Display
  • Small size & Light weight
  • Auto Power off

Specification :

Vibration Velocity

0.1 - 199.9 mm/s True RMS

Accuracy

+ 2% + 0.1 mm/s

Power

Rechargeable Battery

Acceleration

0.1  - 199.9 m/s Peak

Accuracy+

 2% + 0.1 m/s

Display

2 x 16 line back light dot matrix LCD

Displacement

1.0 -2828 m Peak  Peak

Accuracy

+ 5%

Operating Temp. Range

0 - 55oC

Resolution

0.1 mm/s  Casing: ABS

Frequency response

10HZ - 1KHZ  Sealed Membrane key pad

Input Connectors

BNC

Size

200x100x40 mm

Weight

600gms (Approximately)

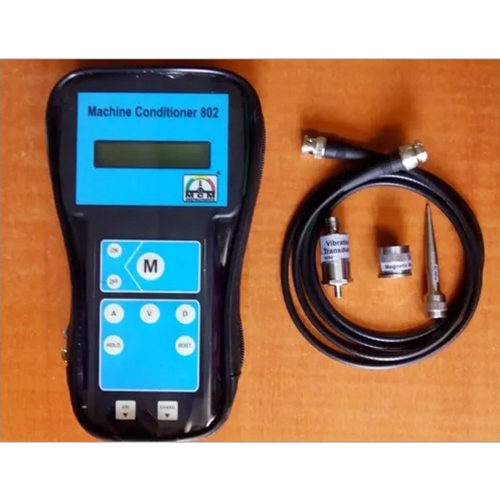

Standard Supply :

  • 01) Machine Conditioner 802 with Protective Pouch,
  • 02) Vibration Transducer (Accelerometer) VSF-1F, Magnetic Base, Low Noise Cable with Connectors (1.5 mtrs),
  • 03) Hand Held Probe Rod,
  • 04) Charger,
  • 05) Manual,
  • 06) Test & Calibration Report with Warranty/Guarantee Certificate &
  • 07) Carry Bag
